Introduction

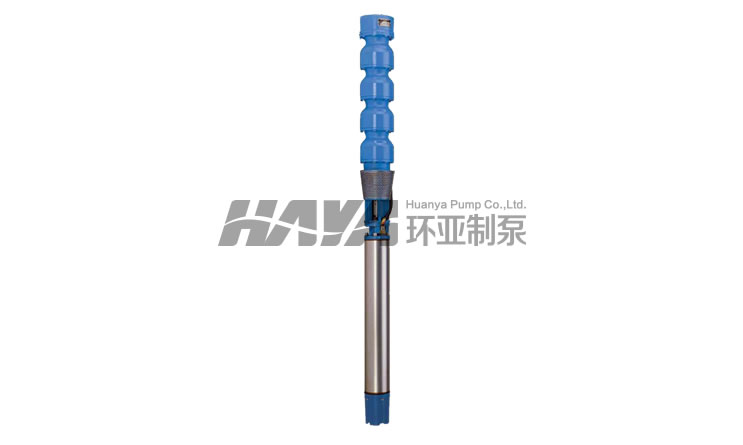

QRJ Submersible Deep Well Pumps

  • Feature

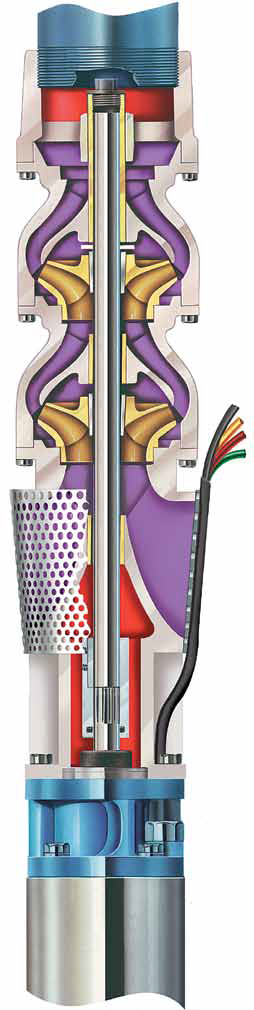

Submersible Deep Well Pumps consist of motor and pump assembly.the structure is reasonable ,easy to install and maintain, and with advanced hydraulic model,they adopting the core produced with the resin sand and the vane runners adopting the new technique that topcoated with epoxy,high efficiency which is 2-5% higher than that of QLJ type submersible turbine pump as well.They are modern machine for lifting water.

  Copacity: ≤2000m3/h

  head≤350m

  motor power:5.5-650KW

  rated voltage:380V,6KV,10KV

  well diameter:100-750mm

  max discharge diameter :450mm




  • Application



Submersible Deep Well Pumps is used to lifting normal temperature clean water without corrosion from well,in discharging from cistern or river,supplying water for high-rise and mine drainage and for water supply and drainage in works and urban area,and lifting underground water etc.




Identification

400QRJ450-30*2

400-min suitable well diameter(mm)

RJC-lineshaft deep well pumps

450-rated capacity

30-head per stage

2-No of stage

Usage

QRJ Submersible Deep Well Pumps is used to lifting to lifting normal temperature clean water without corrosion from well,in dischargening form cistenrn or river,supplying water for high-rise and mine drainage and for water supply and drainage in works and urban area and lifting underground water etc.
