• Feature

1. XBC Diesel deep well fire pumps unit was produced by Huanya pump Ltd.,  in compliance with GB6245-2006 of China and NFPA20 of USA. All products are inspected by China Fire Equipment Supervision and Inspection Center . All items of inspection are good and achieved standard  and approved with fire products certificate

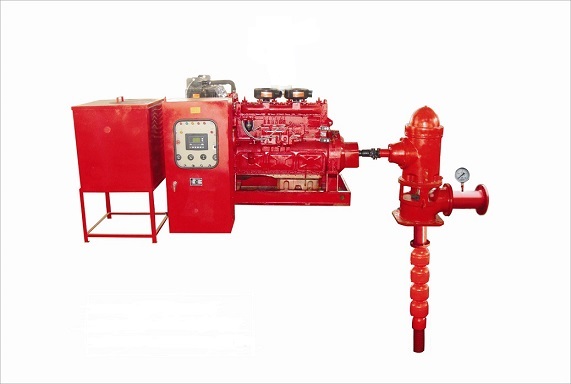

2. Diesel deep well pumps unit was combined with many centrifugal impeller and diversion shell,column ,drive shaft, discharge head, gear box, diesel ,control cabinet and other components.The discharge heard , gear box, and diesel is on the wellhead . The dynamic of Diesel engine assembly is transmitted to gear box by drive shaft of column concentric ，then resulting in flow and pressure.

• Application

XBC Diesel deep well pumps set is provided to fire hydrants, sprinkler auto of fire system for Industrial and Mine enterprise, construction,higher buildings and etc.It not only provide to transfer water without any solid and chemical liquid similar water, but also for water supply system of life and industrial, drainage of building and municipal program, sea port, oil platform and etc which have no power provided.

Usage

The flow can reach up to: 900m3/h

The lift can reach up to 160m

Working pressure: 16bar and 25bar

Temperature range of the medium: -20℃～+140℃

Inlet and outlet diameters: inlet diameter DNS: DN50-DN250

Outlet diameter DND: DN32-DN200

Application:

Water supply, heat supply, air conditioning system, pressurized water supply, fire sprinkler system, spray, irrigation, swimming pool and fountain water supply, and municipal administration, etc.
